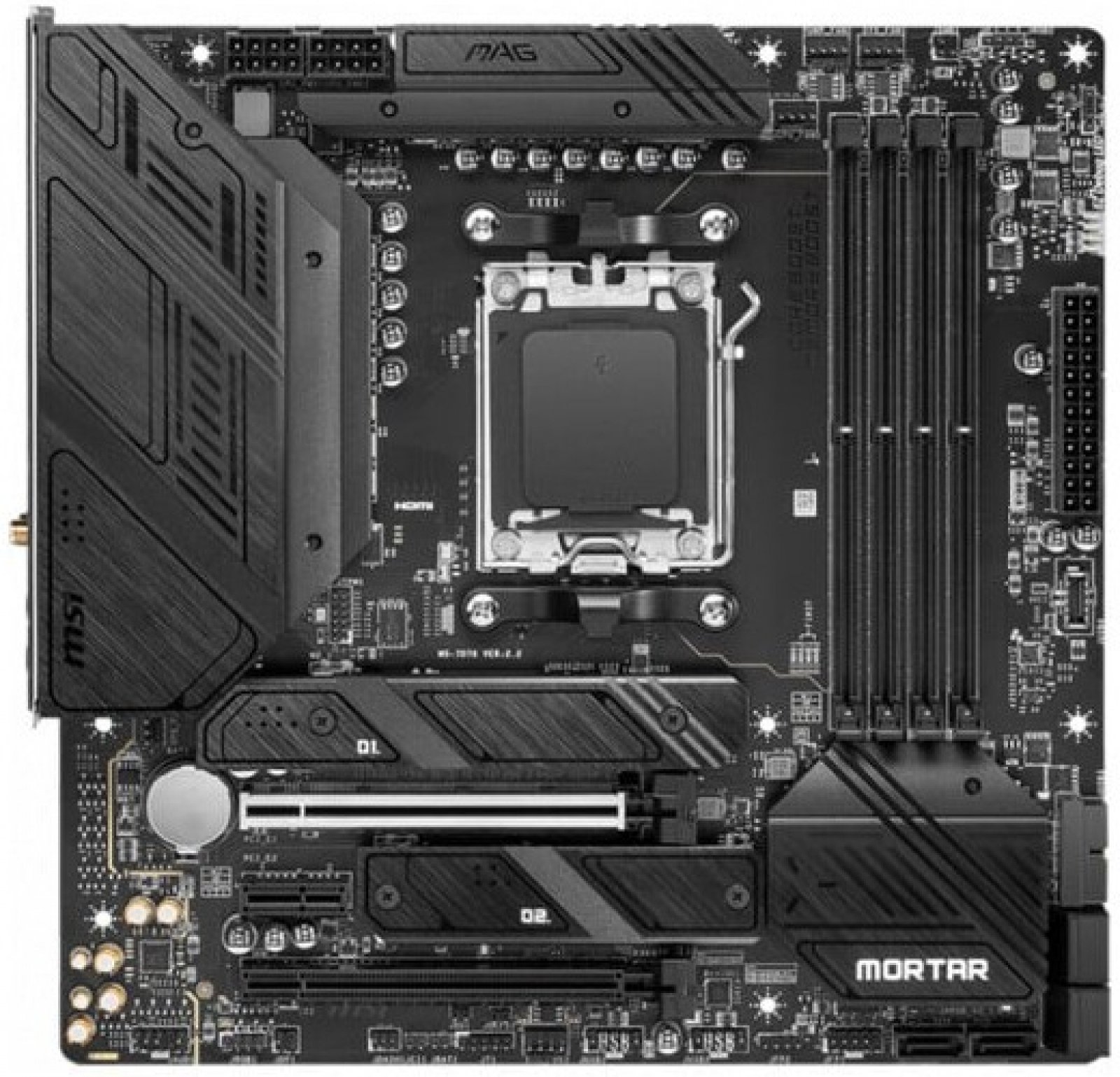

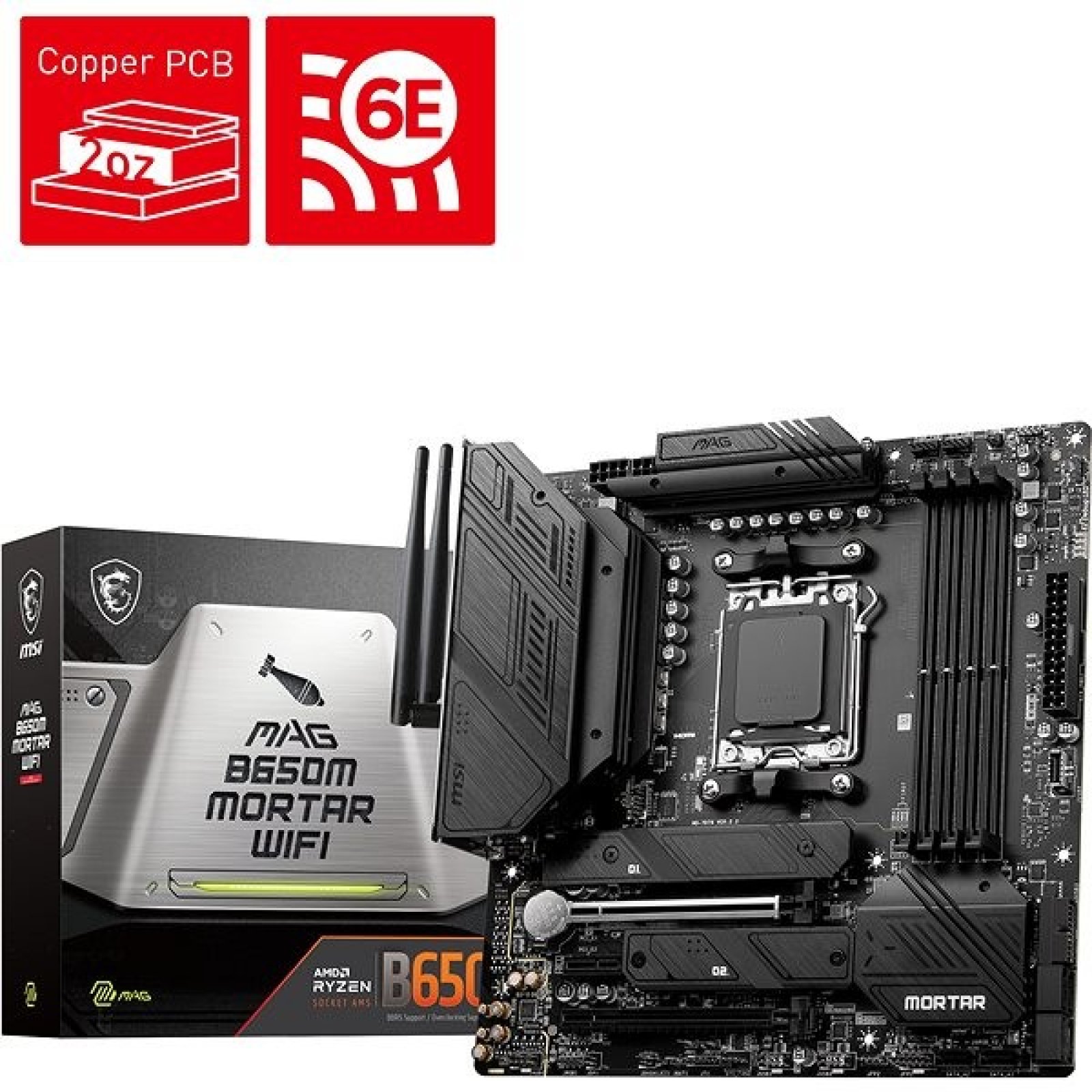

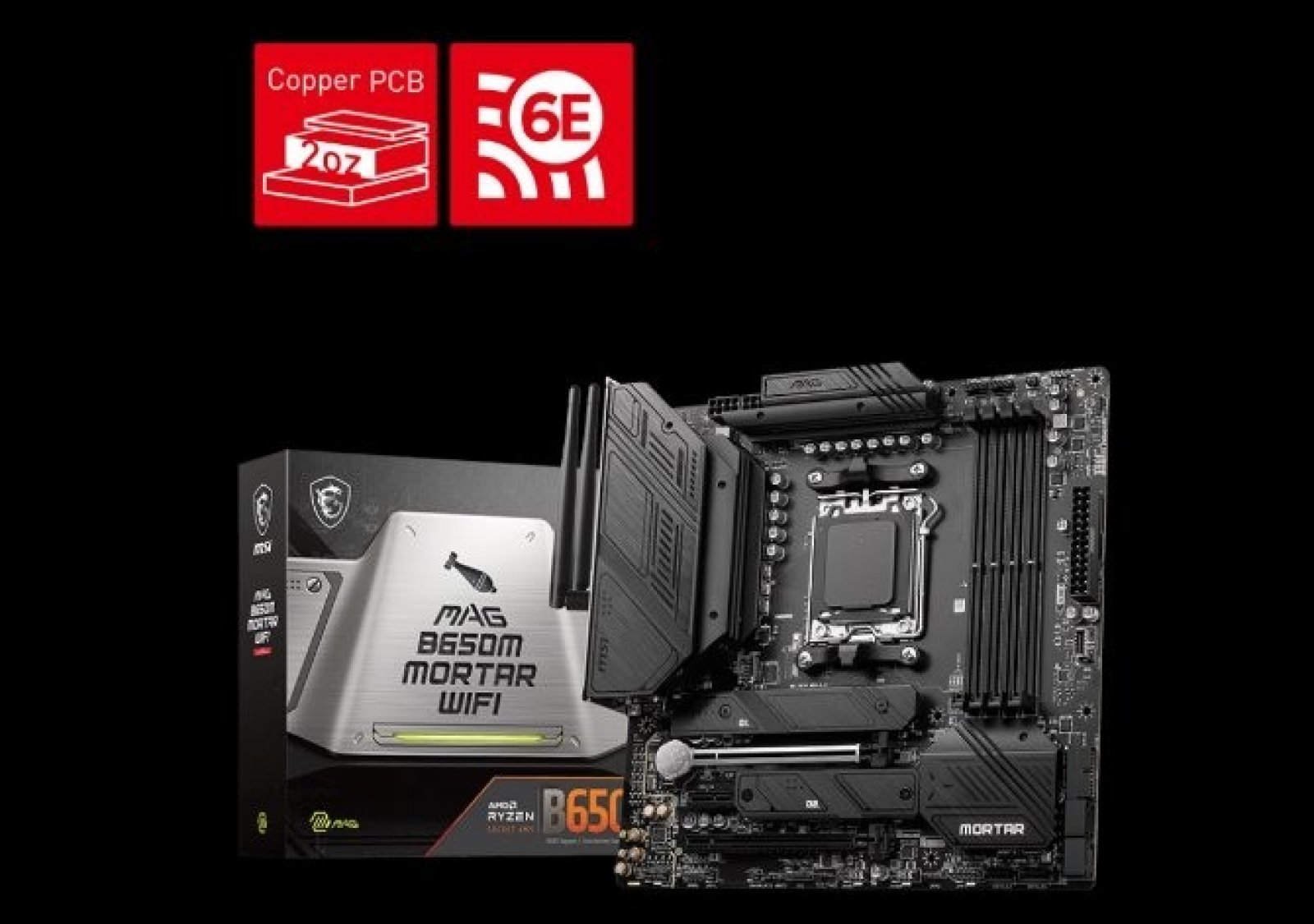

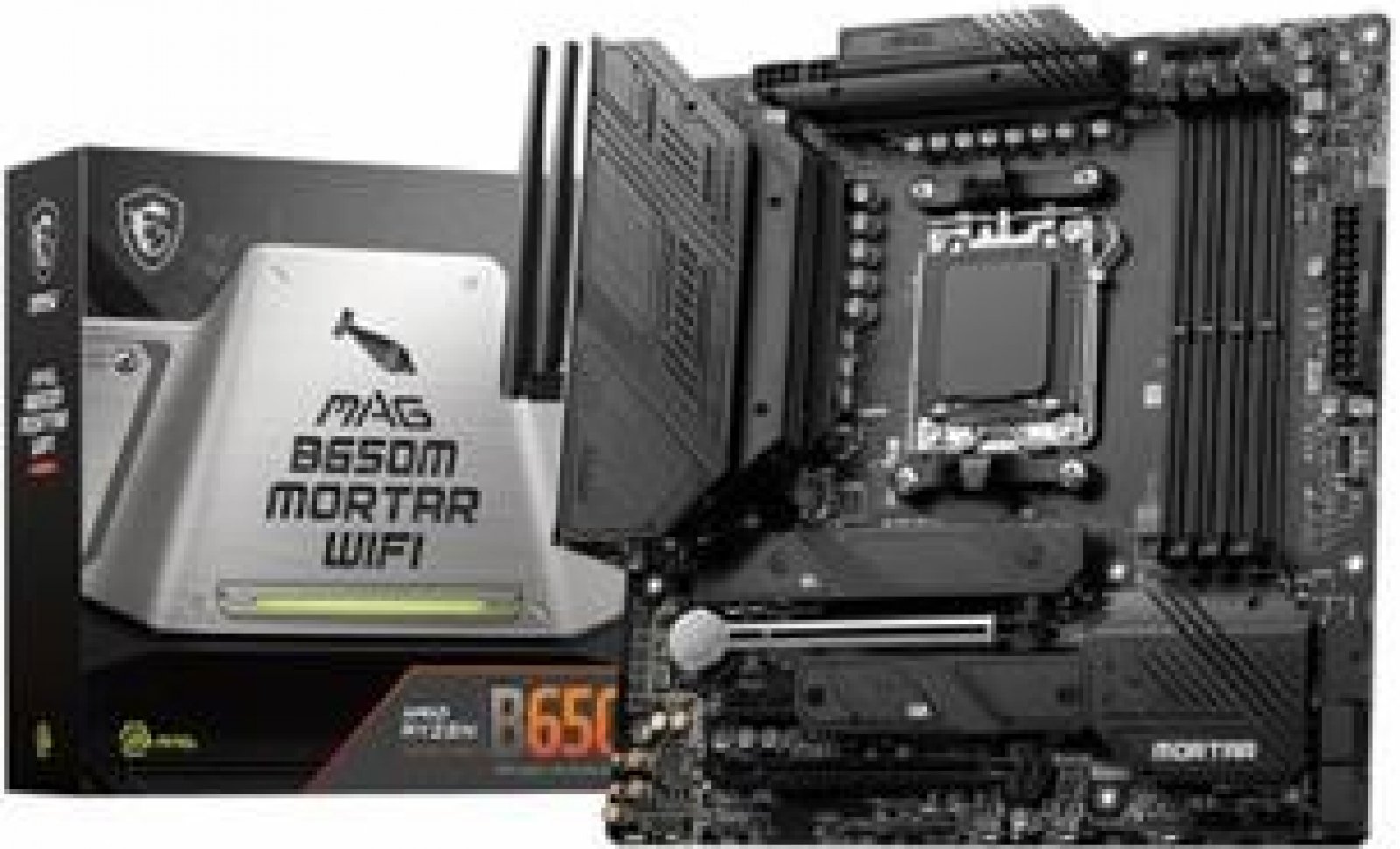

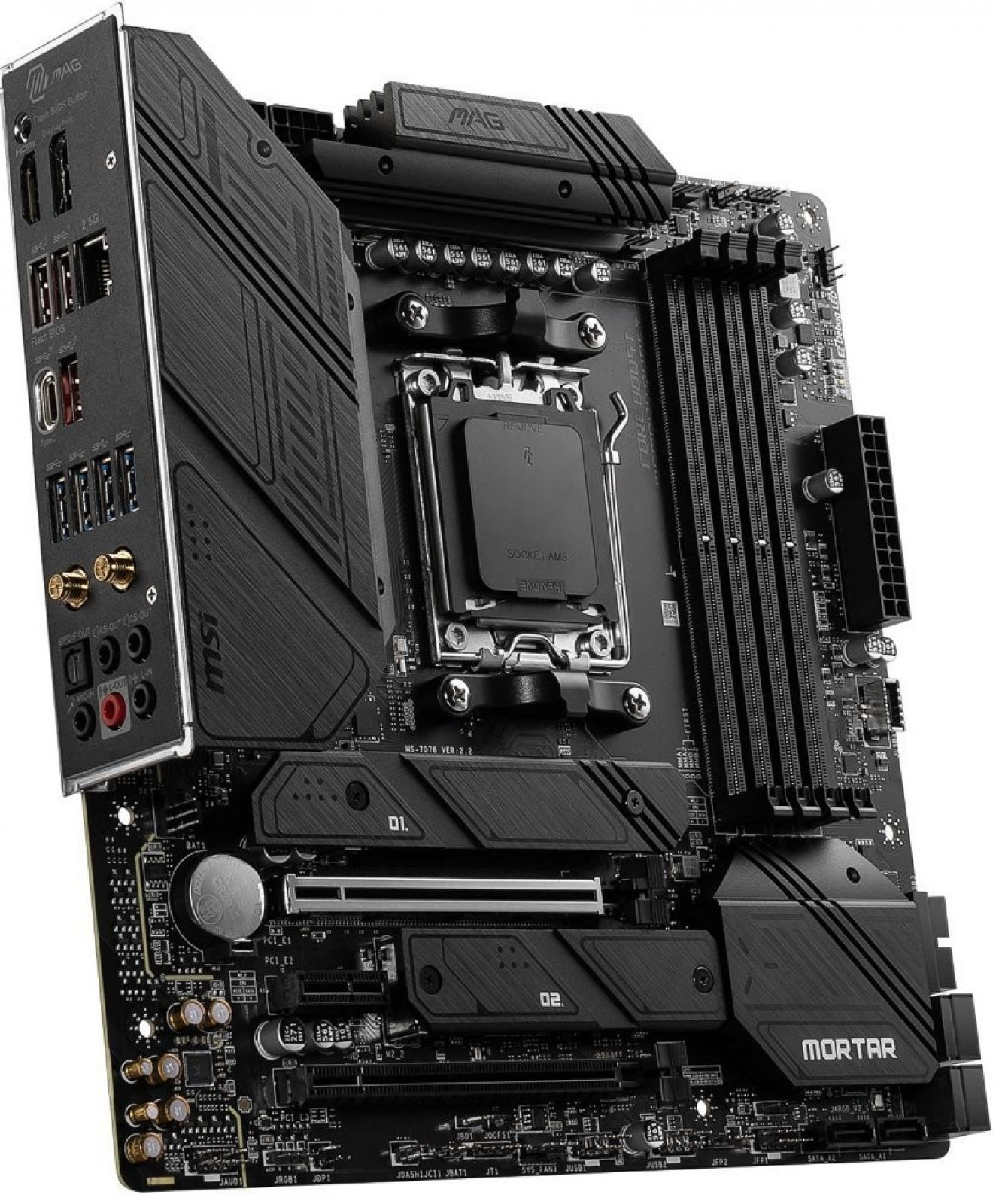

MSI MAG B650M MORTAR WIFI – 7D76-001R

Popis

Chipset AMD B650

CPU SUPPORT Supports AMD Ryzen™ 7000 Series Desktop Processors

Socket AM5

Memory 4x DDR5, Maximum Memory Capacity 128GB

Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Onboard Graphics 1x HDMI™ 1x DisplayPort

Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*

Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT 2x PCI-E x16 slot

Supports x16/x4 1x PCI-E x1 slot

PCI_E1 PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)

Storage 2x M.2 slot

M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port

RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices * SATA_A1_A2 do not support RAID function.

USB 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)

LAN Realtek® RTL8125B 2.5Gbps LAN

WIRELESS / BLUETOOTH AMD Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX

Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.2**

• Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
• * Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.

Audio Realtek® ALC4080 Codec 7.1-Channel High Performance Audio

Supports S/PDIF output

Supports up to 32-Bit/384 kHz playback on front panel

Internal I/O 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C

LED FEATURE 4x EZ Debug LED

BACK PANEL PORTS

DisplayPort 1.4 2.5G LAN Port

USB 3.2 Gen 2 10Gbps Type-A

USB 3.2 Gen 1 5Gbps Type-A

Wi-Fi / Bluetooth Antenna

HD Audio Connectors

Flash BIOS Button

HDMI™ 2.1 Port

USB 3.2 Gen 2×2 20Gbps Type-C

Optical S/PDIF OUT

OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB Dimension mATX 243.84mmx243.84mm
